FiberOptic WiFi Inspection Microscope

FiberOptic WiFi Inspection Microscope

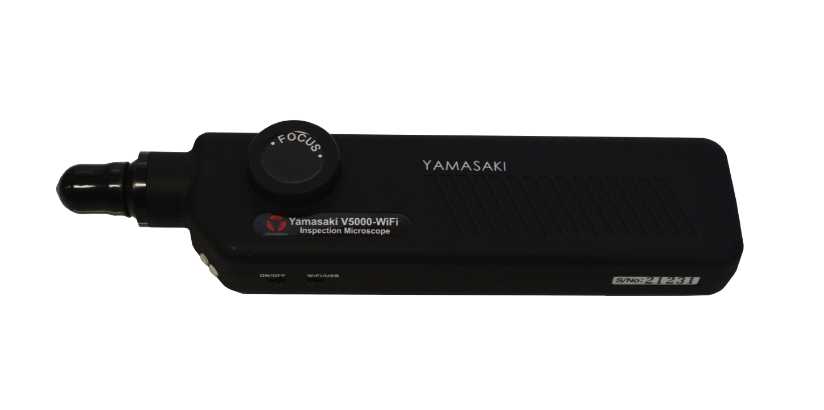

In the world of fiber optic inspection, the Yamasaki V5000 Fiber Optic WiFi Inspection Microscope stands out as a reliable, versatile, and smart device. Seamlessly connecting with both Apple iOS and Android smartphones via WiFi, as well as PCs/laptops through USB, it proves indispensable for field inspection of fiber optic ferrules. The Yamasaki V5000-WiFi boasts Pass/Fail Analysis Software, eliminating the need for extra wireless components. Its precision minimizes subjectivity, delivering swift and accurate results, thus upholding peak fiber network performance.

FiberOptic WiFi Inspection Microscope – Essential Features Enhancing Efficiency

With WiFi and USB connectivity to smartphones and PCs, the Yamasaki V5000-WiFi provides seamless access. Compatible with both Android and iOS (Apple) apps, it adheres to diverse user preferences. The built-in Pass/Fail Analysis adhering to IEC 61300-3-35 standards ensures rigorous scrutiny. It supports various connector and adaptor tip types upon request, promoting adaptability.

Seamless Integration and User-Friendly

The external interface of the Yamasaki V5000 Fiber Optic WiFi Inspection Microscope is a mini 5-pin type, streamlining connectivity. Users can save inspected images and reports, with real-time reporting via smartphones. The microscope’s internal rechargeable battery eliminates the need for additional wireless components. Its design prioritizes user convenience and efficiency.

Applications Spanning Domains

The Yamasaki V5000-WiFi finds applications across a spectrum:

Fiber Optic System / Sub-system with Fiber Networks

Fiber Optic Modules including Transceivers, SFP, etc.

Test Equipment and Distribution Patch Panels

Fiber Optic Components like Attenuators, Inside Adaptors

Key Specifications at a Glance

Magnification: 260X – 400X

Field of Vision: 400μm x 300μm

Focus: Manual, Maximum 2mm in and out

WiFi: 2.4GHz WiFi IEEE 802.11b/g/n

Power: 110/220V@50/60Hz Charger or USB Cable with PC

Battery: 3.7V 1300mA Rechargeable Lithium Polymer Battery

Battery Running Time: Approx. 4 Hours (continuous usage)

USB Cable: mini 5-pin to USB 2.0 for Windows XP, WIN7/8/10

Comprehensive Package

The Yamasaki V5000-WiFi comes complete with:

Software for Pass/Fail Analysis

SC/FC/PC Female Tip

LC/PC Female Tip

2.5mm/PC Male Tip

Discover the world of precision inspection with the Yamasaki V5000-WiFi Inspection Microscope. It redefines accuracy, convenience, and performance, making it the ultimate companion for professionals across various domains.
